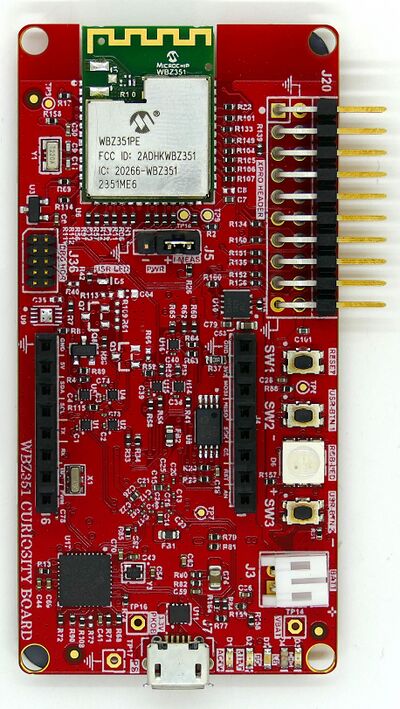

This article describes specifics for the Microchip WBZ351 Curiosity evaluation board. It can be used to test & verify Microchip PIC32CX-BZ3 device support.
Preparing for J-Link
- Connect the J-Link to the SWD header (J36).
- Power the board via the USB jack of the break out board (J7).

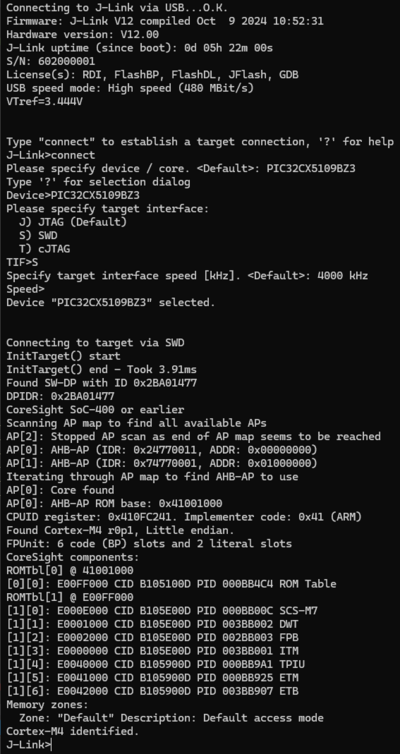

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip WBZ351 Curiosity. It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.16a
- Hardware: Microchip WBZ351 Curiosity
- Link: File:Microchip WBZ351 Curiosity TestProject ES V816a.zip
