This article describes specifics for the Microchip PIC32CZ CA70 Curiosity Ultra evaluation board.

Microchip PIC32CZ CA70 Curiosity Ultra board.jpg

Preparing for J-Link

  • Connect the J-Link to CORTEX DEBUG connector(J300)
  • Power the board via micro-USB connector(J203)

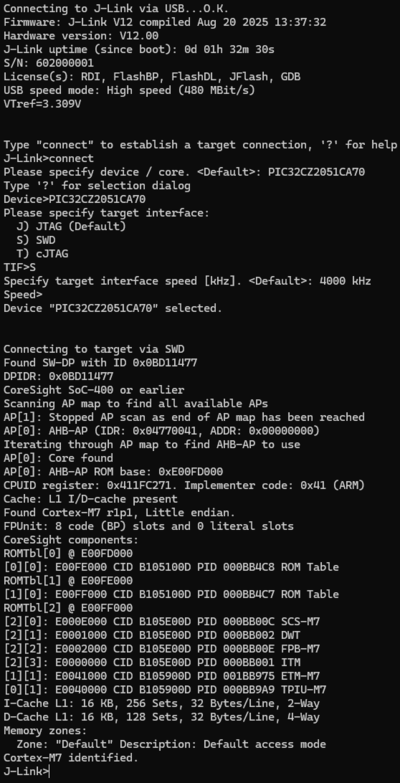

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Microchip PIC32CZ CA70 Curiosity Ultra connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip PIC32CZ CA70 Curiosity Ultra.
It is a simple Hello World sample linked into the internal flash.

SETUP
