This article describes specifics for the Microchip PIC32CM PL10 Curiosity Nano evaluation board.
Preparing for J-Link
- Connect the J-Link to these pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | PinHeader | VTG | VTG |
| GND | PinHeader | GND | GND |
| TMS/SWDIO | PinHeader | D0 | D0 |
| TCK/SWCLK | PinHeader | D1 | D1 |
| RESET | PinHeader | D3 | D3 |
- Power the board via the USB-C connector.

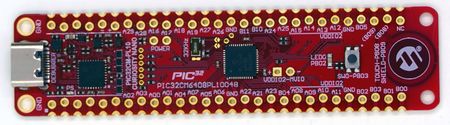

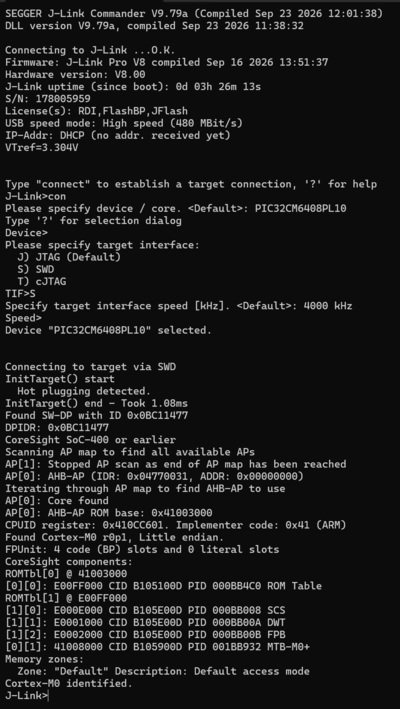

- Verify the connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip PIC32CM PL10 Curiosity Nano.
It is a simple Hello World sample linked to run from internal flash.
SETUP
- Embedded Studio: V8.30a
- Hardware: Microchip PIC32CM PL10 Curiosity Nano
- Link: File:Microchip PIC32CM PL10 TestProject ES V830a.zip
