Microchip CuriosityUltra PIC32CZCA90

From SEGGER Knowledge Base
Jump to navigation Jump to search

This article describes specifics for the Microchip Curiosity Ultra PIC32CZCA90 evaluation board. It can be used to test & verify PIC32CZCA90 device support.

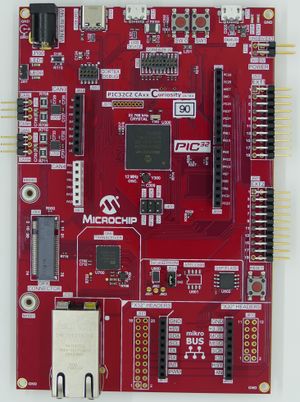

Microchip PIC32CZCA90 board.JPG

Minimum requirements

  • J-Link software V7.94a or later

Preparing for J-Link

  • Connect the J-Link to CORTEX DEBUG connector (J300).
  • Power the board via Power jack connector (J100).

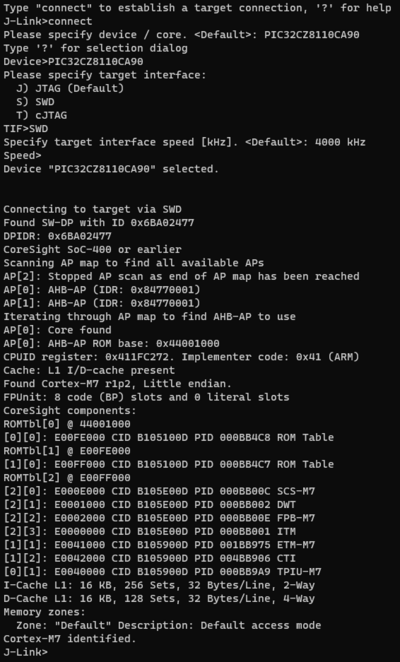

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Microchip PIC32CZCA90 connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip Curiosity Ultra PIC32CZCA90.
It is a simple Hello World sample linked into the internal flash.

SETUP
