Microchip CuriosityPro PIC32CMJH01
Jump to navigation
Jump to search

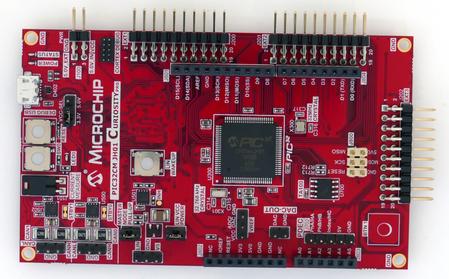

This article describes specifics for the Microchip Curiosity Pro PIC32CMJH01 evaluation board.
Preparing for J-Link
- Connect the J-Link to CORTEX DEBUG.
- Power the board via DEBUG USB.

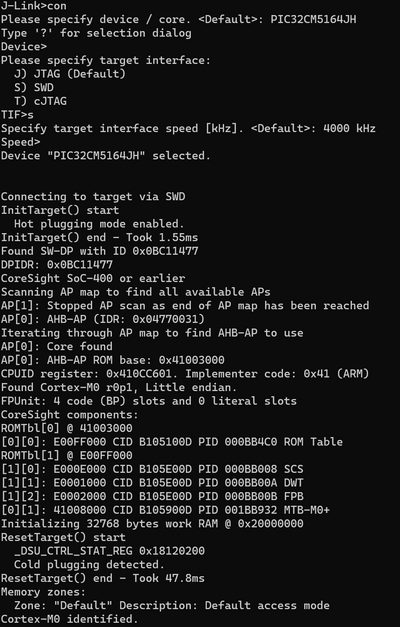

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip Curiosity Pro PIC32CMJH01 .
It is a simple Hello World sample linked into the internal flash.
SETUP
- J-Link software: V7.92f
- Embedded Studio: V7.20
- Hardware: Microchip Curiosity Pro PIC32CMJH01
- Link: File:Microchip PIC32CMJH01 PIC32CM5164JH01 TestProject ES 7V20.zip
