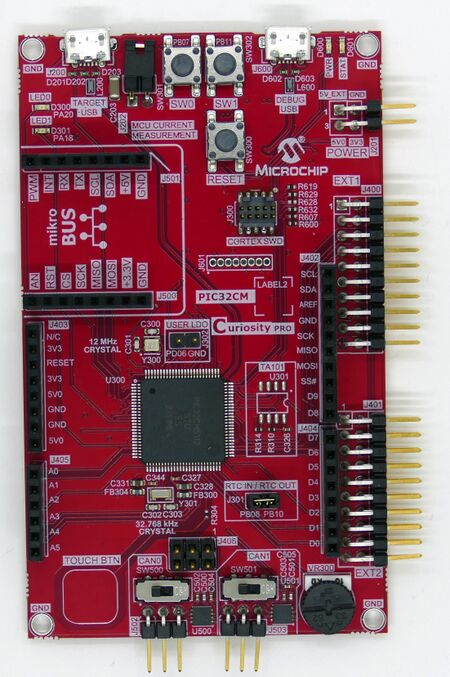

This article describes specifics for the Microchip Curiosit yPro PIC32CM evaluation board.
Preparing for J-Link
- Connect the J-Link to J300.
- Power the board via J60 / (DEBUG USB).

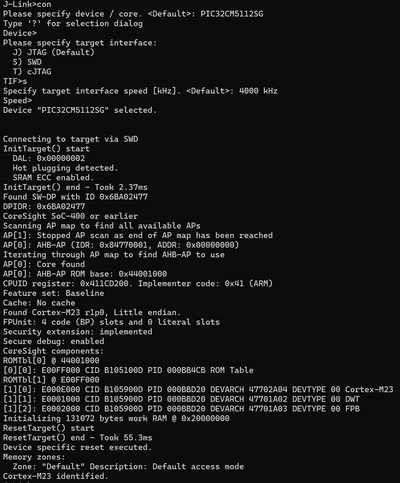

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip Curiosity Pro PIC32CM.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: Microchip Curiosity Pro PIC32CM
- Link: File:Microchip PIC32CM5112SG TestProject ES 7V20.zip
