MAX78002 EV KIT
Jump to navigation
Jump to search

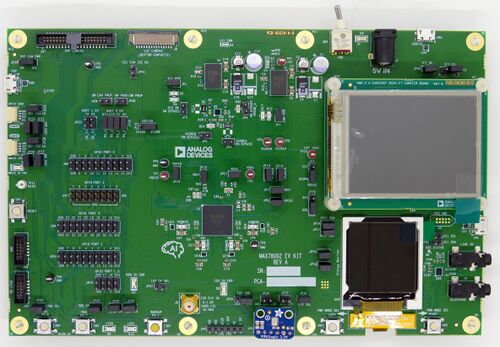

The Analog MAX78002 EV KIT is a MAX78002 evaluation board.
Minimum requirements
- J-Link software V8.10l or later
Preparing for J-Link
- Connect your J-Link to the SWD header (JH8)
- Power the board via "5V IN" (J1)

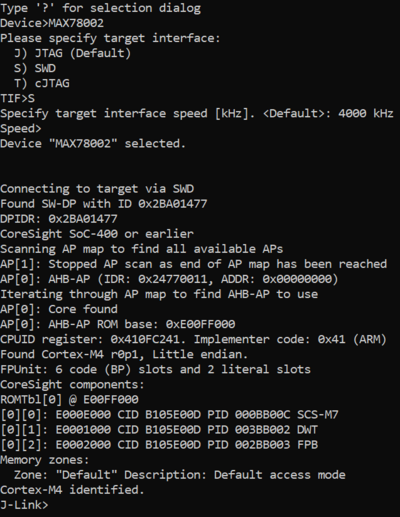

- Verify the Connection with J-Link Commander. The output should look as follows:
Example Projects
Binary Counter
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the MAX78002 EV KIT. It uses LED0 and LED1 as 2-bit binary counter.
Setup
- J-Link software: V8.10l
- Embedded Studio: V8.16
- Hardware: MAX78002 EV KIT
- Link: File:MAX78002 Blinky.zip
