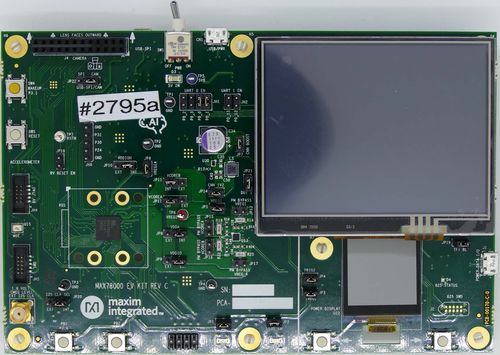

MAX78000 EV KIT

The Analog MAX78000 EV KIT is a MAX78000 evaluation board.

Preparing for J-Link

• Connect your J-Link to the SWD header (JH5)
• Power the board via "USB/PWR" (CN1)
• Turn on the board by setting "PWR" (SW1) to "ON".

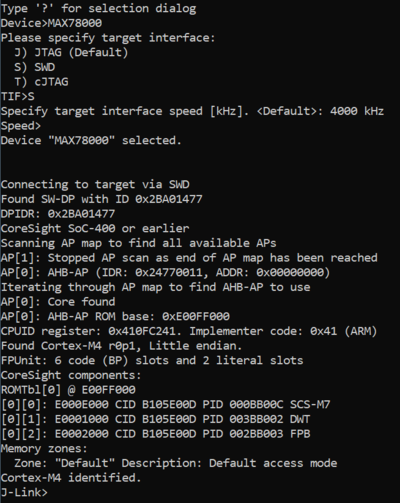

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Maxim MAX78000 KIT. It is a simple Hello World sample linked into the internal flash.

Setup

• J-Link software: V6.91a
• Embedded Studio: V5.10b
• Hardware: MAX78000 EV KIT
• Link: File:Maxim MAX78000 TestProject ES V510b.zip
