MAX32690 EV KIT

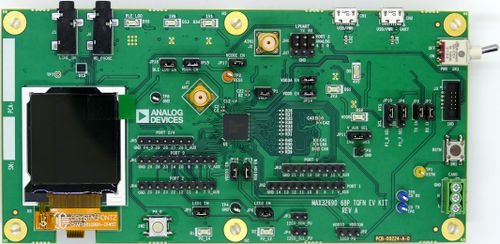

The Analog MAX32690 EV KIT is a MAX32690 evaluation board.

Preparing for J-Link

• Connect your J-Link to the SWD header (J3)
• Power the board via "USB/PWR" (CN1) or "USB/PWR-UART" (CN2)
• Turn on the board by setting "PWR" (SW3) to "ON".

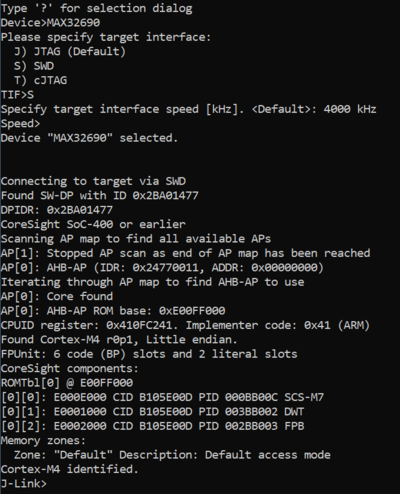

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the MAX32690. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.12
• Embedded Studio: V8.16
• Hardware: MAX32690
• Link: File:MAX32690 HelloWorld.zip
