MAX3262X EV KIT
Jump to navigation
Jump to search

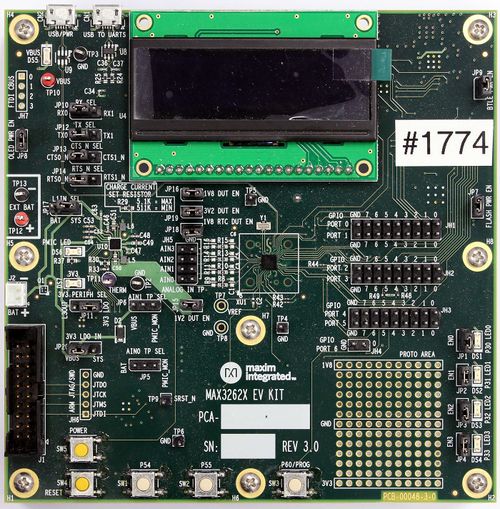

The Analog MAX3262X EV KIT is a MAX32620 evaluation board.
Preparing for J-Link
- Connect your J-Link to the debug header (J1)
- Power the board via "USB PWR" (CN2)

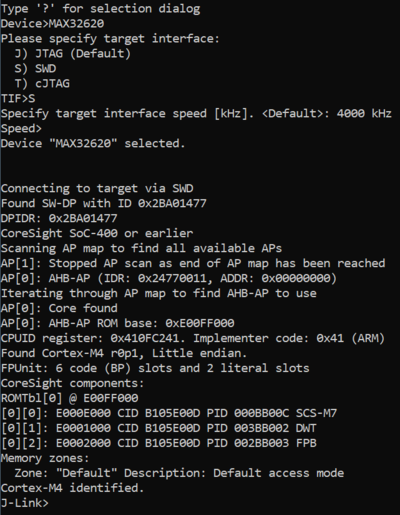

- Verify the Connection with J-Link Commander. The output should look as follows:
Example Projects
Hello World
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the MAX32620. It outputs "Hello World!" to the Debug Terminal in a loop.
Setup
- J-Link software: V8.12
- Embedded Studio: V8.16
- Hardware: MAX32620
- Link: File:MAX32620 HelloWorld.zip
