LM4F232H5QD

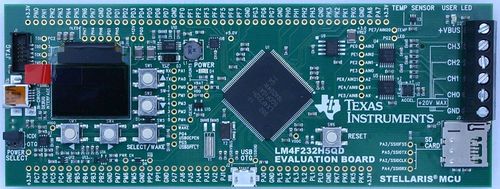

The LM4F232H5QD is an LM4F evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG connector J1 of the evaluation board.
• Set J6 (PWR Source) to ICDI and power the board via J8 (USB).

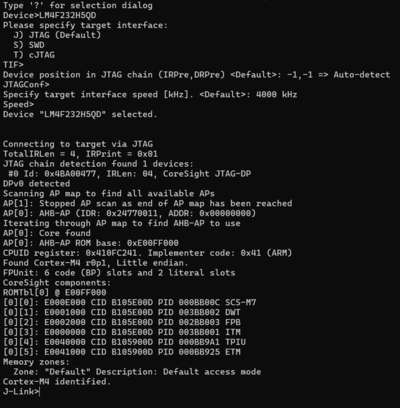

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the LM4F232H5QD. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.21
• Embedded Studio: V8.26
• Hardware: LM4F232H5QD
• Link: File:LM4F232H5QD HelloWorld.zip
