The Linko LKS_EVB_MCU054D is an LKS32MC054D evaluation board.
Preparing for J-Link
- Connect the J-Link to the evaluation board, using jumper wires as follows:
| Evalboard Pin | J-Link Pin | Signal |
|---|---|---|
| 5V | 1 | VTref |
| DIO | 7 | SWDIO |
| CLK | 9 | SWCLK |
| GND | 4 | GND |
| NRST | 15 | RESET |
| 5V | 19 | VSUPPLY |
Note: For a more reliable, simpler solution, the SEGGER Flying Wire Adapter is recommended.
- Power the board via the J-Link using the "Target Power Supply" feature

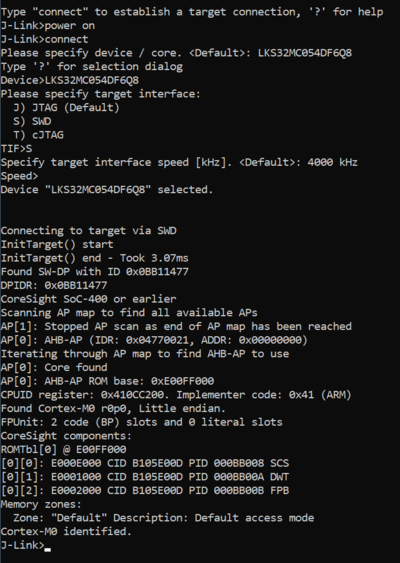

- Verify the Connection with J-Link Commander. The output should look as follows:
Example Projects
Hello World
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the LKS32MC05x. It outputs "Hello World!" to the Debug Terminal in a loop.
Setup
- J-Link software: V8.96
- Embedded Studio: V8.26
- Hardware: Linko LKS32MC05x
- Link: File:LKS32MC05x HelloWorld.zip
