LAUNCHXL CC2650

From SEGGER Knowledge Base
Jump to navigation Jump to search


The TI LAUNCHXL CC2650 evaluation board does come with an on board debugger which drives the debug signals by default.

Connecting via J-Link

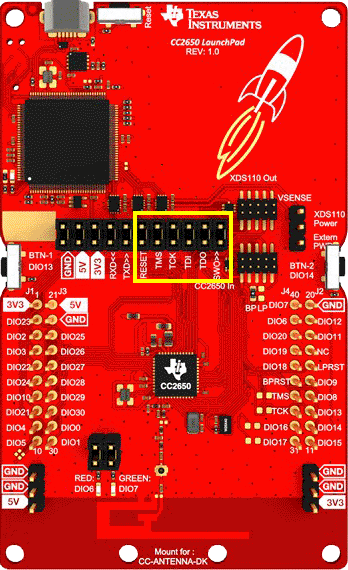

In order to connect to the LAUNCHXL CC2650 board via J-Link the following jumpers must be open:

  • RESET
  • TMS
  • TCK
  • TDI
  • TDO
  • SWO

Otherwise the on board debugger by TI interferes with J-Link.

WIKI TI LAUNCHXL CC2650.png
