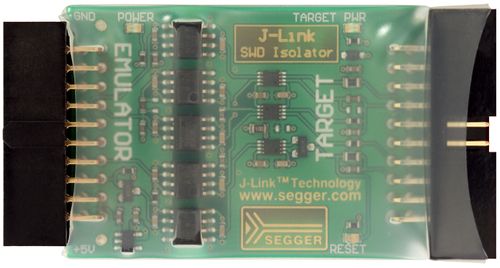

J-Link SWD Isolator V1
Jump to navigation
Jump to search
This page contains the mechanical and electrical specifications of the J-Link SWD Isolator V1.x. For information on the general specifications as well as an overview of all J-Link SWD Isolator revisions please refer to J-Link SWD Isolator.
Specifications
| Specification | Value |
|---|---|
| General | |
| Basic isolation | 1kV DC |
| Supported target operation voltage | 3.3V / 5V |
| Target side current consumption | 25mA typ. / 40mA max. |
| Supported SWD speed | Max. 4 Mhz |
| Interface | |
| Emulator side | 20-pin 0.1" female connector |
| Target side | 20-pin 0.1" male connector |
