Infineon TLE995/4x DUTboard

From SEGGER Knowledge Base
Jump to navigation Jump to search

This article describes specifics for the Infineon TLE995_4x DUTboard evaluation board.

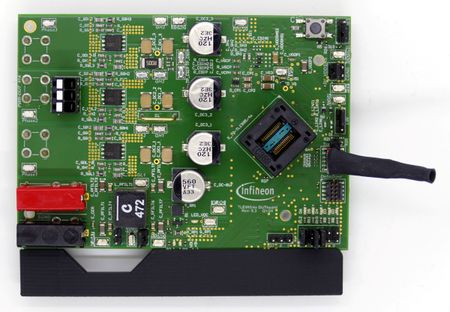

Infineon TLE995 4x DUTboard TLE9954 board.jpg

Preparing for J-Link

  • Connect the J-Link to DEBUGGER.
  • Power the board via VBAT(12V) & SGND(GND).
  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Infineon TLE995 4x DUTboard TLE9954 connect.png
