This article describes specifics for the Infineon TLD4020-3STD_EVAL evaluation board.

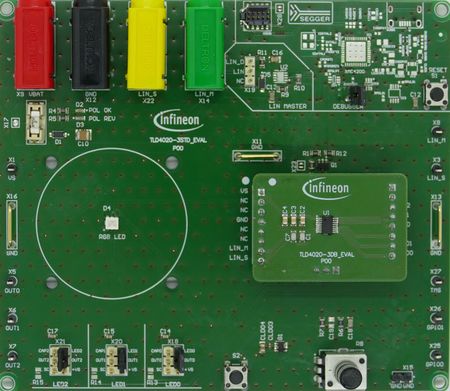

Infineon TLD40203-STD EVAL TLD4020-3ET board.jpg

Preparing for J-Link

  • Connect the J-Link to XEB1.
  • Power the board via X9(12V) & X12(GND).
  • Open DEBUGGER jumper.
  • Turn R8 clockwise to the end.
  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

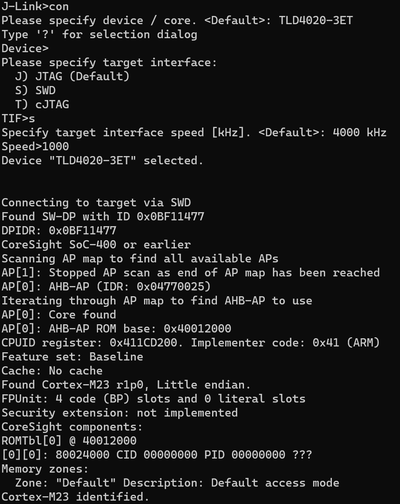

Infineon TLD40203-STD EVAL TLD4020-3ET connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Infineon TLD4020-3STD_EVAL.
It is a simple Hello World sample linked into the internal flash.

SETUP
