This article describes specifics for the Infineon S6T3J200361A176A2 evaluation board.

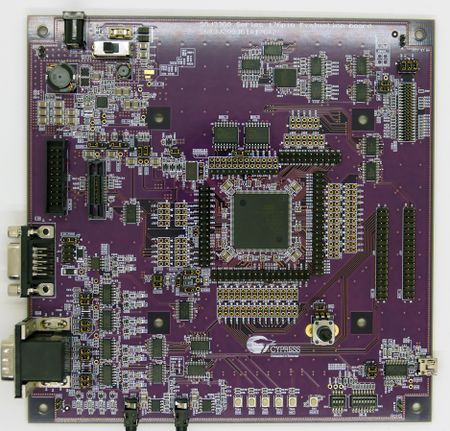

Preparing for J-Link
- Connect the J-Link to JTAG connector (CN16).
- Power the board via power connector (P3).
- Turn on the power switch (SW16).

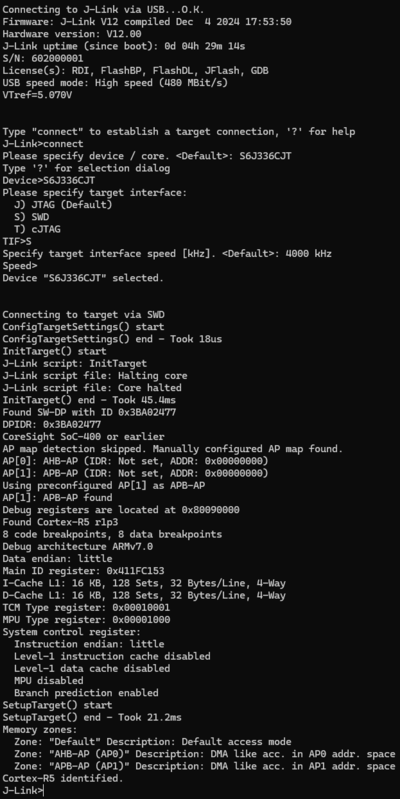

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Infineon S6T3J200361A176A2.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: Infineon S6T3J200361A176A2
- Link: File:Infineon S6T3J200361A176A2 TestProject ES V820.zip
