This article describes specifics for the Infineon REF_WLC_TX15W_C1 evaluation board.
File:Infineon REF WLC TX15W C1 WLC1115-68QLXQ board.jpg
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J2 | 5 | VTARG |
| GND | J2 | 4 | GND |
| TMS/SWDIO | J2 | 1 | HPI_I2C_SDA |
| TCK/SWCLK | J2 | 2 | HPI_I2C_SCL |
| RESET | J2 | 3 | RESET |
| 5V-SUPPLY | J2 | 5 | VTARG |
- Supply the board using the J-Link 5V-SUPPLY.

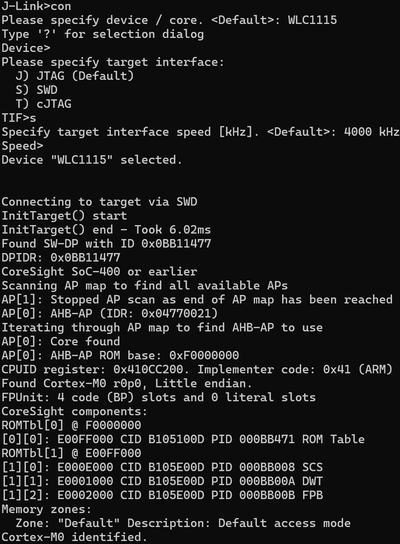

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Infineon REF_WLC_TX15W_C1.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: Infineon REF_WLC_TX15W_C1
- Link: File:Infineon WLC1115 TestProject ES 7V20.zip
