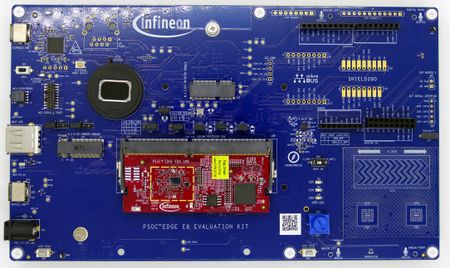

This article describes specifics for the Infineon PSOC Edge E8 Evaluation Kit evaluation board.

Infineon PSOC Edge E8 Evaluation Kit.jpg

Preparing for J-Link

  • Connect the J-Link to MCU DEBUG (J15)
  • Power the board via VIN (7V - 12V, 3A)

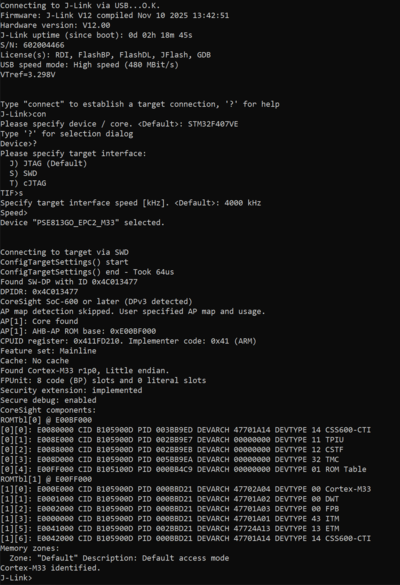

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Infineon PSoC Edge E8 CONNECT.PNG

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Infineon PSOC Edge E8 Evaluation Kit.
It is a simple Hello World sample linked into the RRAM.

SETUP
