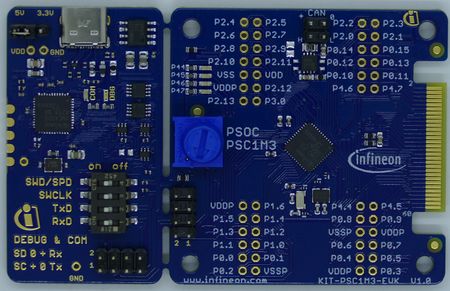

This article describes specifics for the Infineon KIT-PSC1M3-EVK evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | X201 | 3 | VDDP |
| GND | X201 | 4 | GND |
| SWDIO | X201 | 2 | SWD (SPD) |
| SWCLK | X201 | 1 | SWCLK |
| 5V-Supply | X201 | 6 | VDDP |
- Set power supply jumper to 5V side
- Power the board with 5V via J-Link (Pin 19, 5V-Supply)

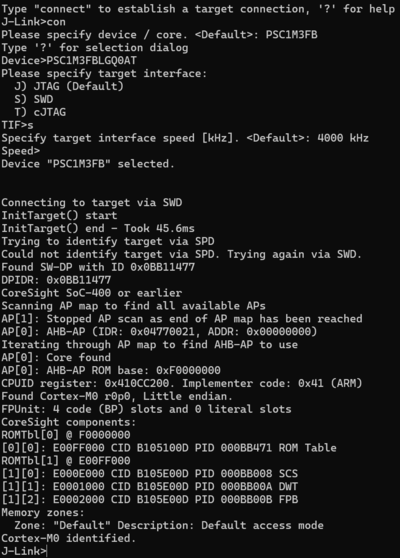

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Infineon KIT-PSC1M3-EVK.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.30a
- Hardware: Infineon KIT-PSC1M3-EVK
- Link: File:Infineon PSC1M3FB TestProject ES V830a.zip
