Infineon EVAL PMG1 B1 DRP
Jump to navigation
Jump to search
This article describes specifics for the Infineon EVAL PMG1 B1 DRP evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J4 | 1 | B1_VDDD |
| GND | J4 | 2 | GND |
| TMS/SWDIO | J4 | 9 | SWDIO |
| TCK/SWCLK | J4 | 7 | SWDCLK |
| RESET | J4 | 5 | RESET |
- Power the board via J1 9...22V.

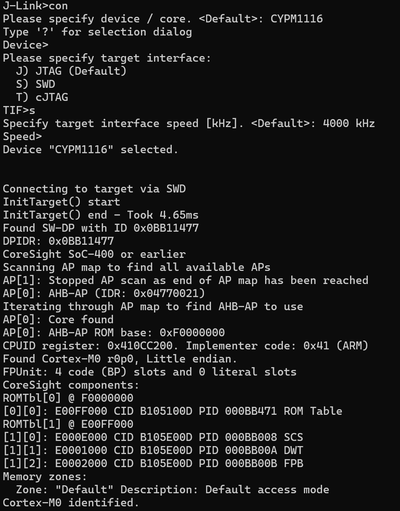

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the [SiliconVendor] [EvalBoardName].
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: Infineon EVAL PMG1 B1 DRP
- Link: File:Infineon CYPM1116 TestProject ES V720.zip
