This article describes specifics for the Infineon CYHVPA-128K-32-001 evaluation board.

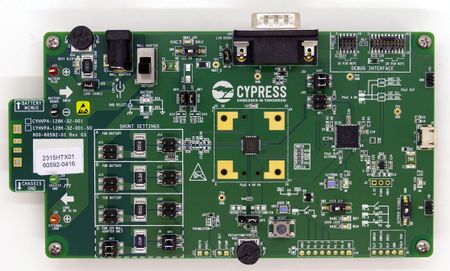

Infineon CYHVPA-128K-32-001 CY8C4127LCE-HV423 board.jpg

Preparing for J-Link

  • Connect the J-Link to J5.
  • Power the board via J22.

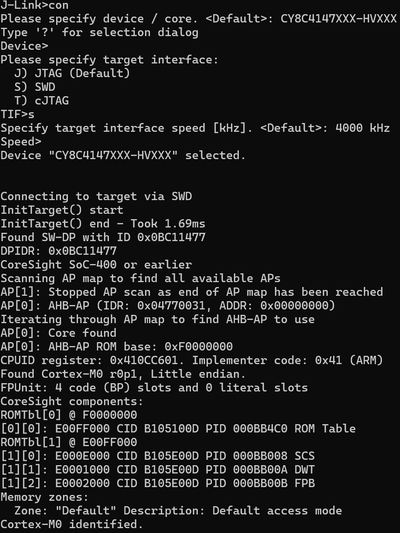

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Infineon CYHVPA-128K-32-001 CY8C4127LCE-HV423 connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Infineon CYHVPA-128K-32-001.
It is a simple Hello World sample linked into the internal flash.

SETUP
