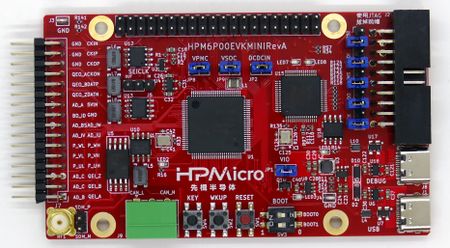

HPMicro HPM6P00EVKMINIRevA

This article describes specifics for the HPMicro HPM6P00EVKMINIRevA evaluation board.

Preparing for J-Link

• Connect the J-Link to the 20-pin connector (J2)
• Power the board via USB-C connector (J1)

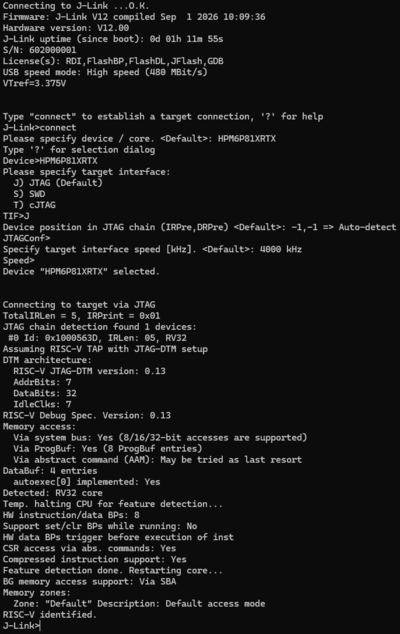

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the HPMicro HPM6P00EVKMINIRevA.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.28a
• Hardware: HPMicro HPM6P00EVKMINIRevA
• Link: File:HPMicro HPM6P00EVKMINIRevA TestProject ES V828a.zip
