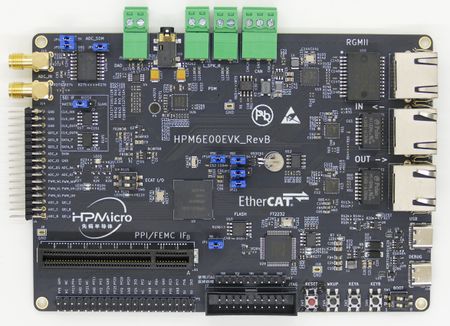

This article describes specifics for the HPMicro HPM6E00EVK evaluation board. It can be used to test & verify HPM6Exx device support.
Minimum requirements
- J-Link software V7.96m or later
Preparing for J-Link
- Remove all jumpers from J17
- Connect the J-Link to the JTAG connector (J2)
- Power the board via external power supply USB (J1)

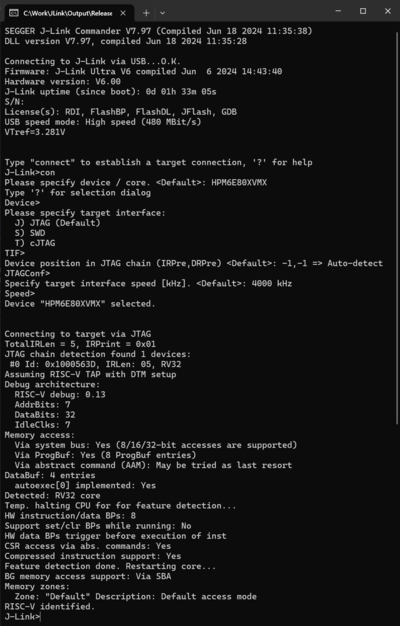

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
