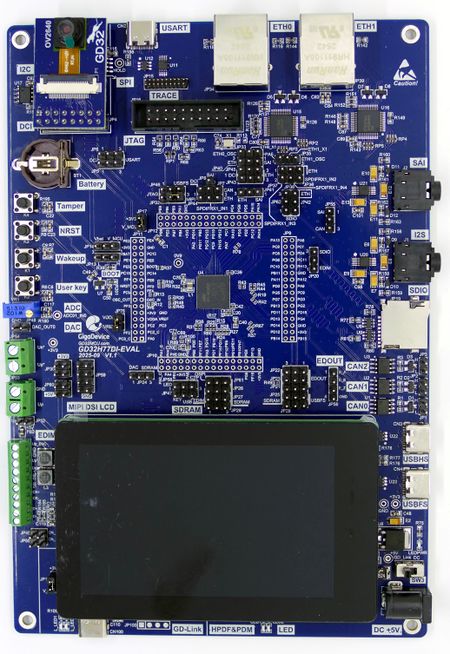

This article describes specifics for the GigaDevice GD32H77DI-EVAL evaluation board.
Preparing for J-Link
- Connect the J-Link to the 20-pin JTAG connector (JP1).
- Power the board either via the DC+5V barrel jack or via the GD-Link USB-C port (CN100).

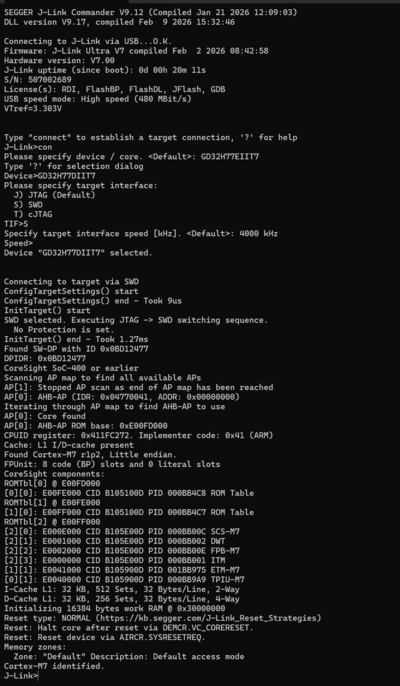

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the GigaDevice GD32H77EI-EVAL.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.26b
- Hardware: GigaDevice GD32H77DI-EVAL
- Link: File:GigaDevice GD32H77x TestProject ES V826.zip
