This article describes specifics for the GigaDevice GD32F5HCR-EVAL evaluation board.
Preparing for J-Link
- Connect J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | SWD | 4 | +3V3 |
| GND | SWD | 1 | GND |
| TMS/SWDIO | SWD | 3 | SWDIO |
| TCK/SWCLK | SWD | 2 | SWCLK |
| RESET | JP5 | 25 | NRST (optional) |
- Power the board via the GD-Link USB-C connector.

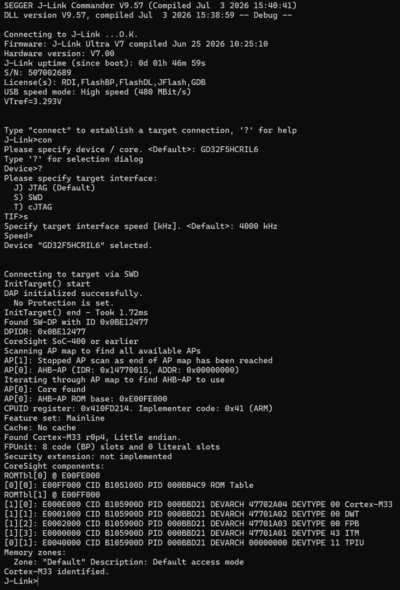

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the GigaDevice GD32F5HCR-EVAL.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.28
- Hardware: GigaDevice GD32F5HCR-EVAL
- Link: File:GigaDevice GD32F5HC TestProject ES V828.zip
