This article describes specifics for the GigaDevice GD32E252K-START evaluation board.
Preparing for J-Link

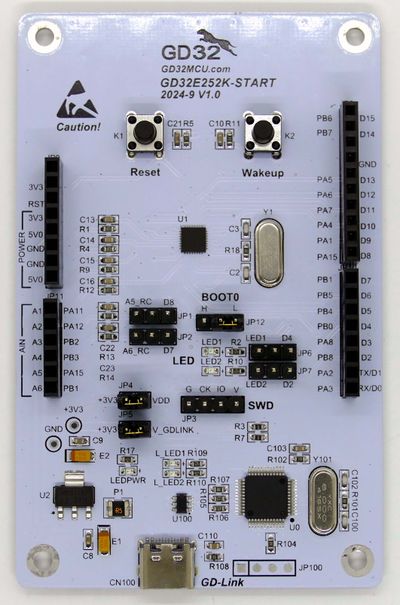

- Power the board via CN1 (USB-C)

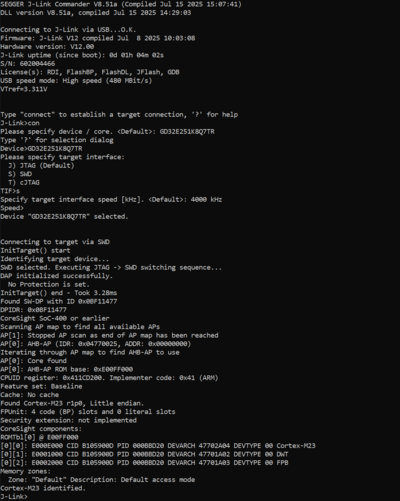

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded GigaDeviceudio project wizard and runs out-of-the-box on the GigaDevice GD32E252K-START.
It is a simple Hello World sample linked into the internal flash.
SETUP
- J-Link software: VX.XX
- Embedded Studio: V8.24
- Hardware: GigaDevice GD32E252K-START
- Link: File:GigaDevice GD32E252K-START Projekt.zip
