GigaDevice GD32407H-START
Jump to navigation
Jump to search

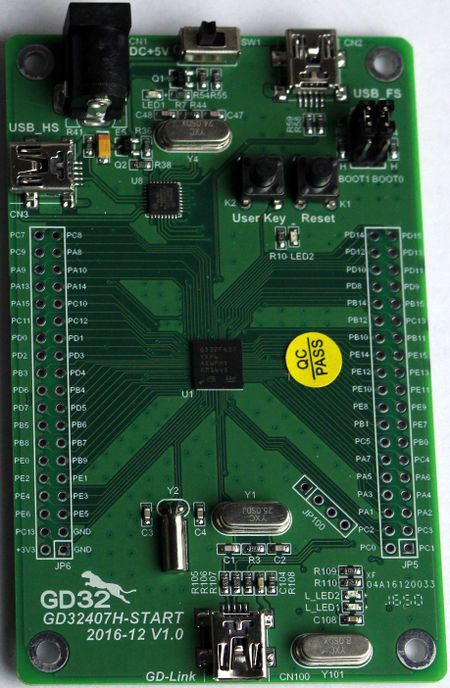

This article describes specifics for the GigaDevice GD32407H-START evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | JP6 | 2 | +3V3 |
| GND | JP6 | 1 | GND |
| TMS/SWDIO | JP6 | 33 | PA13 |
| TCK/SWCLK | JP5 | 32 | PA14 |
- Power the board via CN3.

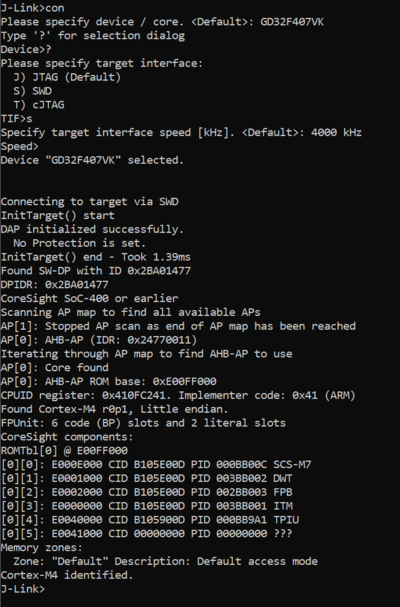

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the GigaDevice GD32407H-START.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.10b
- Hardware: GigaDevice GD32407H-START
- Link: File:GigaDevice GD32F407VK TestProject ES V810b.zip
