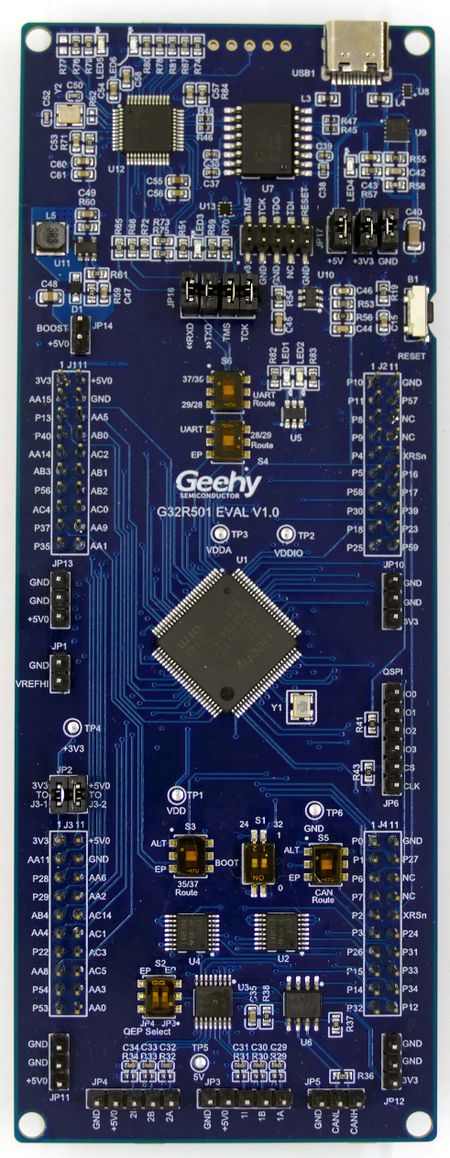

This article describes specifics for the Geehy G32R501 EVAL evaluation board. It can be used to test & verify G32R501xx device support.
Minimum requirements
- J-Link software V8.64 or later
Preparing for J-Link
- Remove all jumpers from JP16
- Connect JP16-2(TCK) to J-Link Pin-9(SWCLK)
- Connect JP16-4(TMS) to J-Link Pin-7(SWDIO)
- Connect a GND-Pin to any J-Link GND-Pin (4, 6, 8, 10, 12)
- Connect a 3.3V-Pin to J-Link Pin-1 (VTref)
- Power the board via external power supply USB-C (USB1)

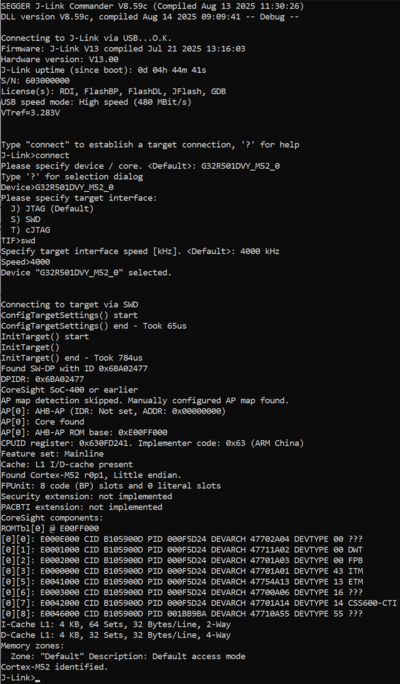

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
