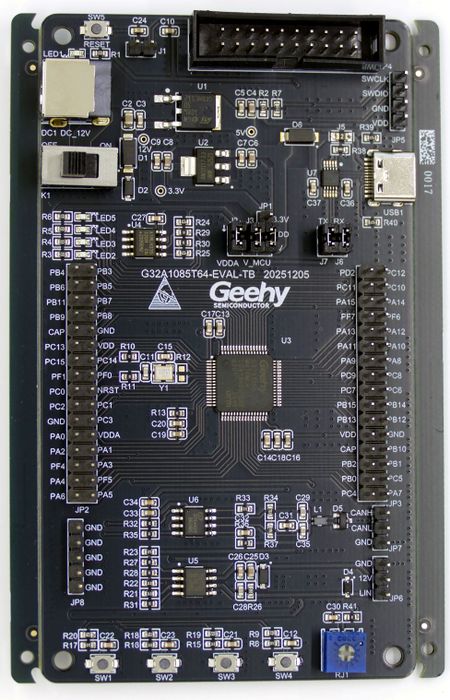

This article describes specifics for the Geehy G32A1085T64-EVAL-TB evaluation board.
Preparing for J-Link
- Connect the J-Link to JP4.
- Power the board via USB-C.

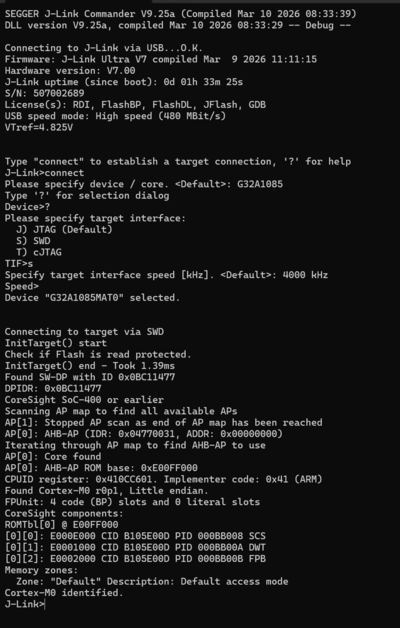

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the [SiliconVendor] [EvalBoardName].
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V8.26c
- Hardware: Geehy G32A1085T64-EVAL-TB
- Link: File:Geehy G32A10xx TestProject ES V826c.zip
