Forgix Board

The Forgix Board is based on the RP2354 microcontroller featuring an Efinix Trion T8 FPGA.

Preparing for J-Link

• Connect the J-Link to J2 using the 6-pin Needle Adapter.
• Power the board via the USB-C connector.

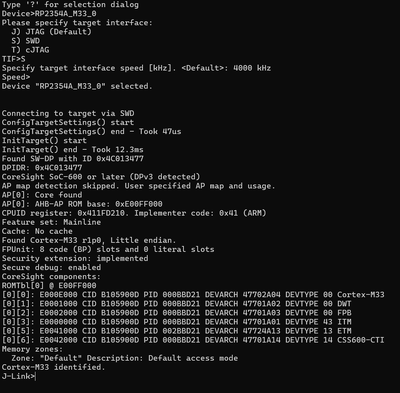

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Forgix Board.
It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V9.82
• Embedded Studio: V8.26
• Hardware: Forgix Board
• Link: File:RP2350 HelloWorld.zip

Tracing on the Forgix Board

Trace is not possible on this board as the trace pins are hardwired to the FPGA chip.
