FM0-64L-S6E1C3

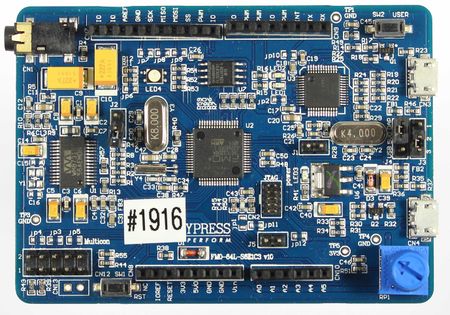

The FM0-64L-S6E1C3 is an S6E1C32 evaluation board.

Preparing for J-Link

• Connect the J-Link to the JTAG connector CN2
• Power on the board via the USB connector CN3

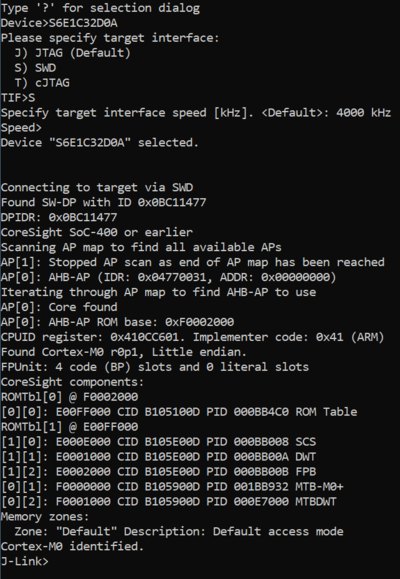

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the FM0-64L-S6E1C3. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.12
• Embedded Studio: V8.16
• Hardware: FM0-64L-S6E1C3
• Link: File:S6E1C32 HelloWorld.zip
