FM0-100L-S6E1B8
Jump to navigation
Jump to search

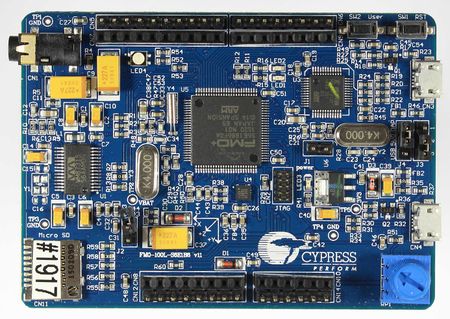

The FM0-100L-S6E1B8 is an S6E1B86 evaluation board.
Preparing for J-Link
- Connect the J-Link to the JTAG connector CN2
- Power on the board via the USB connector CN3

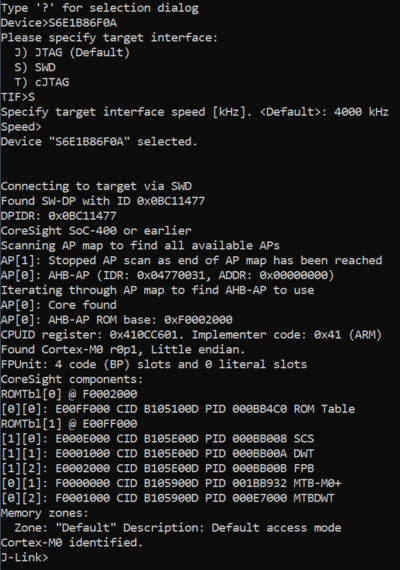

- Verify the Connection with J-Link Commander. The output should look as follows:
Example Projects
Hello World
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the FM0-100L-S6E1B8. It outputs "Hello World!" to the Debug Terminal in a loop.
Setup
- J-Link software: V8.12
- Embedded Studio: V8.16
- Hardware: FM0-100L-S6E1B8
- Link: File:S6E1B86 HelloWorld.zip
