EVLKSTCOMET

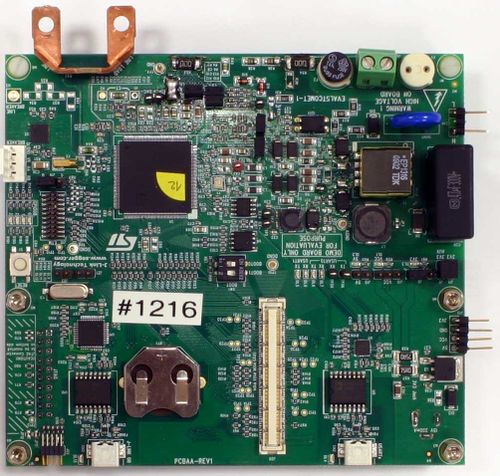

The EVLKSTCOMET is a STCOMET evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG connector on the bootom side of the evaluation board.
• Power the board via the power jack on the bottom side of the board.

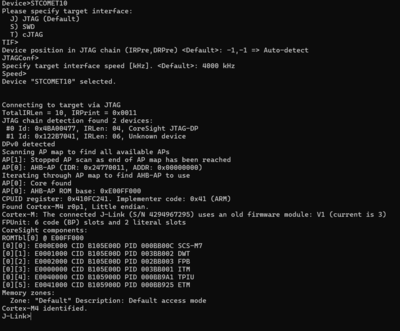

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the EVLKSTCOMET. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V9.50
• Embedded Studio: V8.26
• Hardware: EVLKSTCOMET
• Link: File:STCOMET HelloWorld.zip
