EVAL-CM403-EZLITE

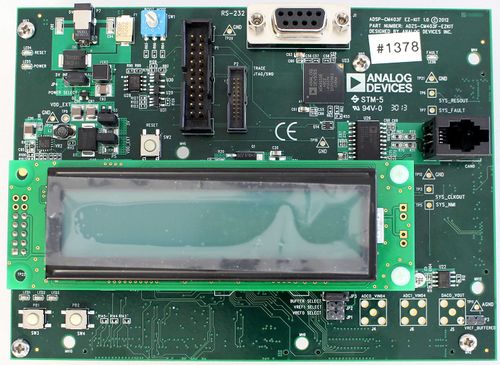

The EVAL-CM403-EZLITE is an ADSP-CM40 evaluation board.

Preparing for J-Link

• Connect your J-Link to P1 or P2 (JTAG/SWD connector) of the evaluation board.
• Power the evaulation board via P7.

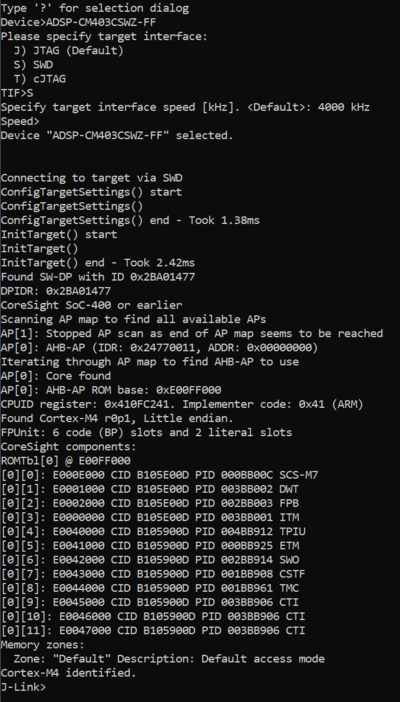

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ADSP-CM40. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.21
• Embedded Studio: V8.16
• Hardware: ADSP-CM40
• Link: File:CM40 HelloWorld.zip
