EVAL-ADuCM355QSPZ

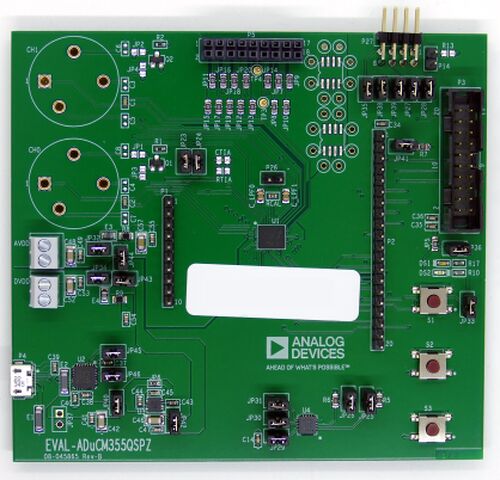

The EVAL-ADuCM355QSPZ is an ADuCM355 evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG connector P3.
• Power the board via the USB connetor P4.

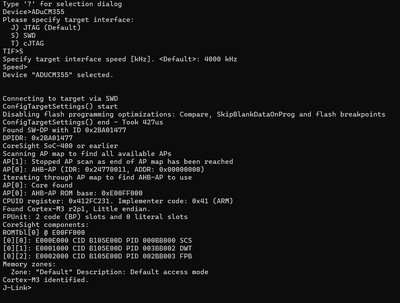

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ADuCM355. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.94
• Embedded Studio: V8.16
• Hardware: ADuCM355
• Link: File:ADuCM355 HelloWorld.zip
