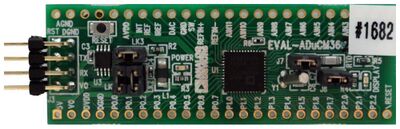

The EVAL-ADUCM362 is an ADuCM362 evaluation board.
Preparing for J-Link
It is recommend to use the Analog Devices USB-SWD/UART adapter to connect J3 of the evaluation board.
Using adapter board
- Connect your J-Link to the JTAG header of the adapter board.
- Connect J2 of the adapter board to J3 of th eevaulation board.
- Power the adapter board via USB.

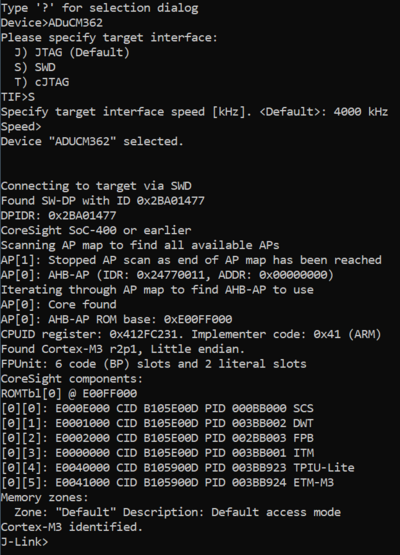

- Verify the Connection with J-Link Commander. The output should look as follows:
Direct connection
If no adapter board is available, jumper wires could be used instead:
| Evalboard Pin | J-Link Pin | Signal |
|---|---|---|
| RST | 15 | RESET |
| DGND | 4 | GND |
| Left of TX | 7 | SWDIO |
| TX | - | Not connected |
| Left of RX | 9 | SWCLK |
| RX | - | Not connected |
| Left of V0 | 19 | 5V-Supply |
| V0 | 1 | VTref |
- Connect the J-Link to J3 of the evaluation board, using jumper wires as described above.

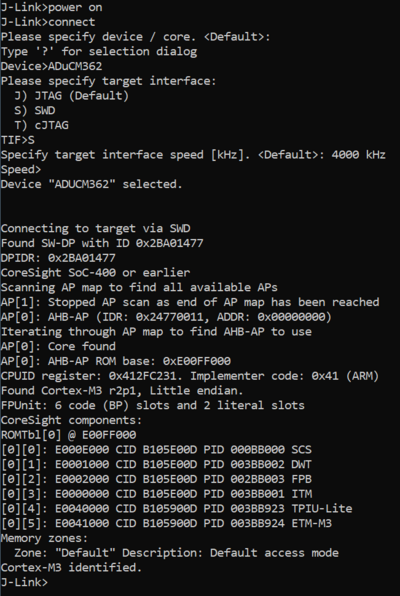

- Verify the Connection with J-Link Commander. Enable target supply voltage with
power on. The output should look as follows:
Example Projects
Hello World
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ADuCM362. It outputs "Hello World!" to the Debug Terminal in a loop.
Setup
- J-Link software: V8.12
- Embedded Studio: V8.16
- Hardware: ADuCM362
- Link: File:ADuCM362 HelloWorld.zip
