This article describes specifics for the ECR2560 FULLMASK 40PIN EVK evaluation board.
ESWIN ECR2560 FULLMASK 40PIN EVK ECR2560 board.jpg

Preparing for J-Link

  • Connect the J-Link to J18.
  • Power the board via 13.

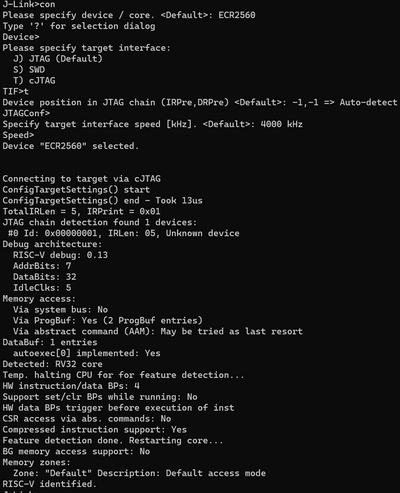

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

ESWIN ECR2560 FULLMASK 40PIN EVK ECR2560 connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ESWIN ECR2560 FULLMASK 40PIN EVK.
It is a simple Hello World sample linked into the internal flash.

SETUP
