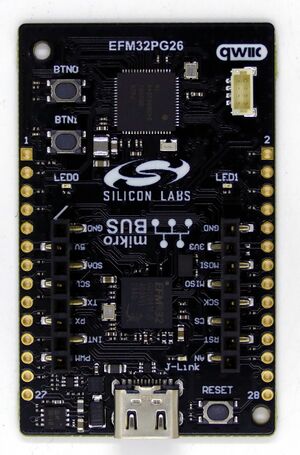

EFM32PG26 Explorer Kit

The EFM32PG26 Explorer Kit is an Silicon Labs EFM32xG26 evaluation board.

Preparing for J-Link

There is an onboard debugger (J-Link OB) available on this board.

• Connect a USB-C cable to power the board and to activate the J-Link OB.

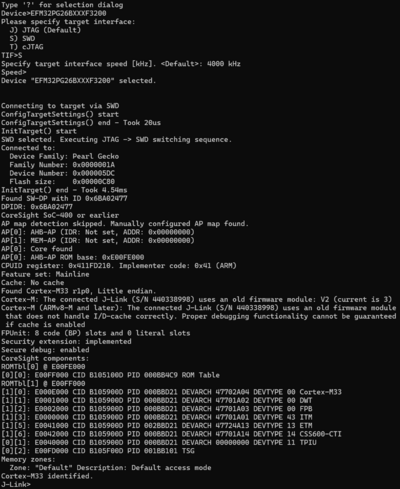

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

HelloWorld

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the EFM32PG26. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.70
• Embedded Studio: V8.24
• Hardware: EFM32PG26
• Link: File:EFM32PG26 HelloWorld.zip
