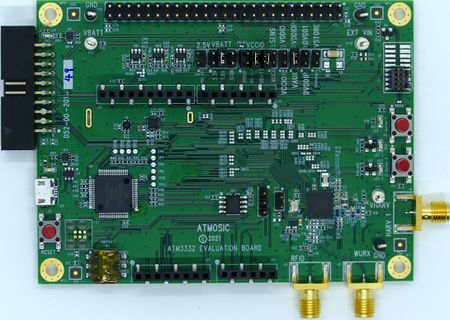

Atmosic ATM3332 Evaluation Board

This article describes specifics for the Atmosic ATM3332 evaluation board.

Preparing for J-Link

• Connect to the JLink OB K22 CortexM
• Power the board via micro USB Connector (J15)

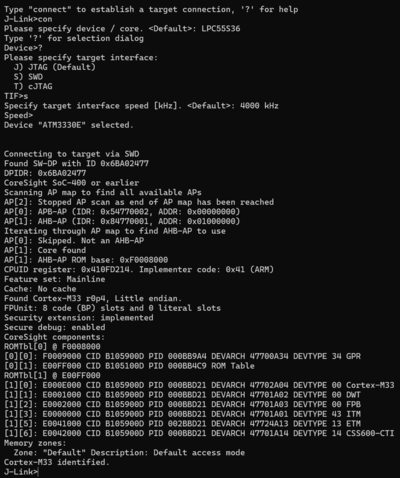

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Atmosic ATM3332.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.30
• Hardware: Atmosic ATM3332
• Link: File:ATMOSIC ATM3330e TestProject ES V830.zip
