ArteryTek AT-START-F415
Jump to navigation
Jump to search

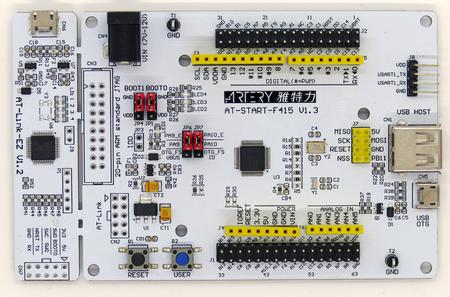

This article describes specifics for the ArteryTek AT-START-F415 evaluation board.
Preparing for J-Link
- Connect the J-Link to this pins:
| J-Link Pin | Connector | Pin | Name |
|---|---|---|---|
| VTref | J1 | 32 | VDD |
| GND | J1 | 31 | GND |
| TDI | J1 | 18 | PA15 |
| TMS/SWDIO | J1 | 14 | PA13 |
| TCK/SWCLK | J1 | 17 | PA14 |
| TDO/SWO | J1 | 23 | PB3 |
| RESET | J2 | 7 | NRST |
- Power the board via USB CN6.
- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ArteryTek AT-START-F415.
It is a simple Hello World sample linked into the internal flash.
SETUP
- J-Link software: V7.94h
- Embedded Studio: V7.20
- Hardware: ArteryTek AT-START-F415
- Link: File:Artery AT-START-F415 AT32F415RCT7-7 TestProject ES 7V20.zip
