ADZS-U4050LF-EZKIT

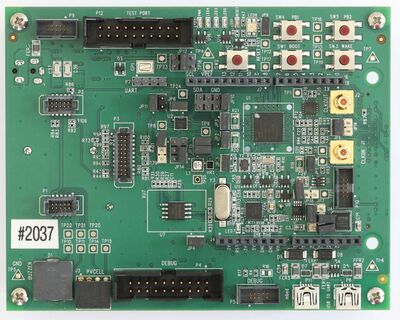

The ADZS-U4050LF-EZKIT is a ADuCM4050 evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG header (P4 or P5)
• Power the board via USB (P11)

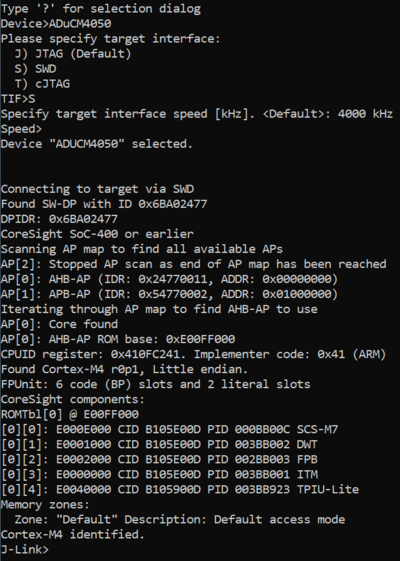

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ADuCM4050. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.12
• Embedded Studio: V8.16
• Hardware: ADuCM4050
• Link: File:ADuCM4050 HelloWorld.zip
