A2F-DEV-KIT

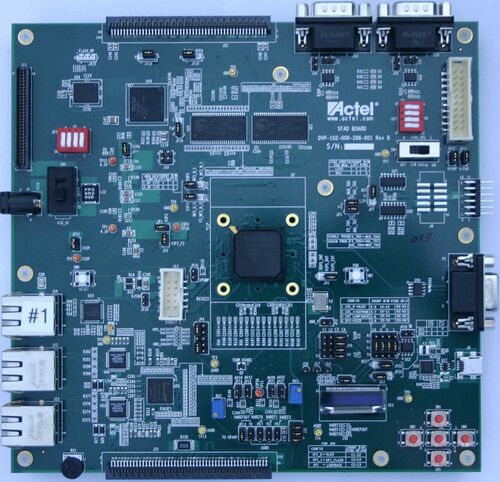

The A2F-DEV-KIT is a SmartFusion evaluation board.

Preparing for J-Link

• Connect your J-Link to the JTAG header (J3)
• Power the board via "V5IN" (J1)
• Turn on the board by setting SW6 to "ON".

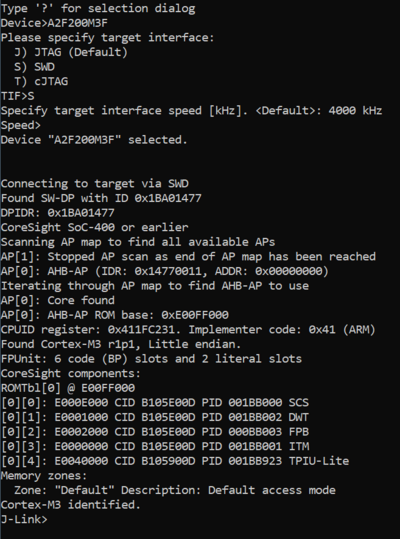

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on SmartFusion (A2FxxxM3x) processors. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V8.12
• Embedded Studio: V8.16
• Hardware: SmartFusion (A2FxxxM3x)
• Link: File:SmartFusion HelloWorld.zip
