This article describes specifics for the Nations N32H760VIB7_STB evaluation board.

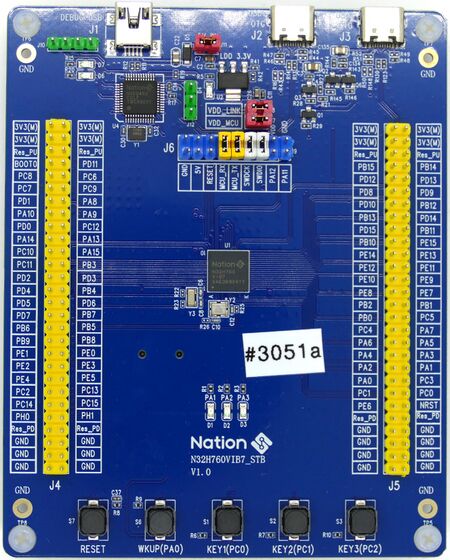

Nations N32H760VIB7 STB board.JPG

Preparing for J-Link

  • Connect the J-Link to this pins:
J-Link Pin Connector Pin Name
VTref J9 1 VDD
GND J9 16 GND
TMS/SWDIO J9 4 SWDIO
TCK/SWCLK J9 6 SWDCLK
RESET J9 12 RESET
  • Power the board via Mini-USB connector (J1)

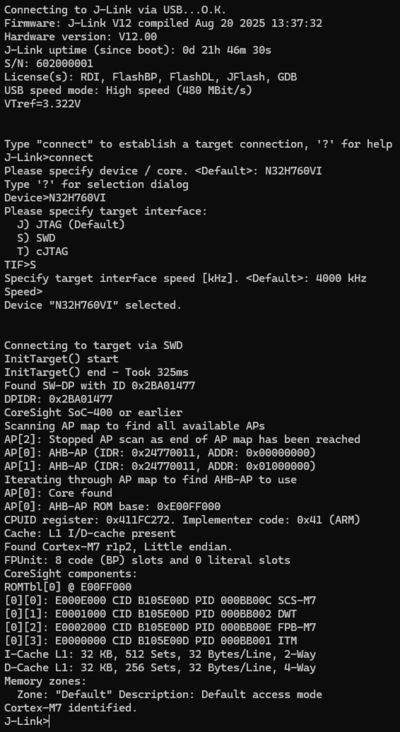

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Nations N32H760VIB7 STB connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Nations N32H765IIB7EC_STB.
It is a simple Hello World sample linked into the internal flash.

SETUP
