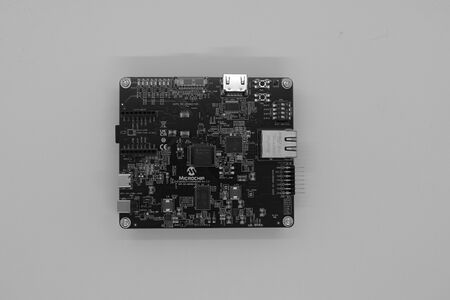

This article describes specifics for the Microchip PIC64GX Curiosity Kit.
Preparing for J-Link
The eval kit does not have a dedicated header to connect an external debug probe. To be able to use your J-Link with the board the following steps are necessary:
- Connect the J-Link to the board via the SEGGER Flying Wire Adapter.
- Connect the adapter to this pins/testpoints:
| Adapter Pin | Board label |
|---|---|
| VTref | 3P3V |
| GND | GND |
| TRST | TRST# |
| TDI | TDI |
| TMS/SWDIO | TMS |
| TCK/SWCLK | TCK |
| TDO/SWO | TDO |
- The wiring should look as follows:
- Power the board via USB-C connector.

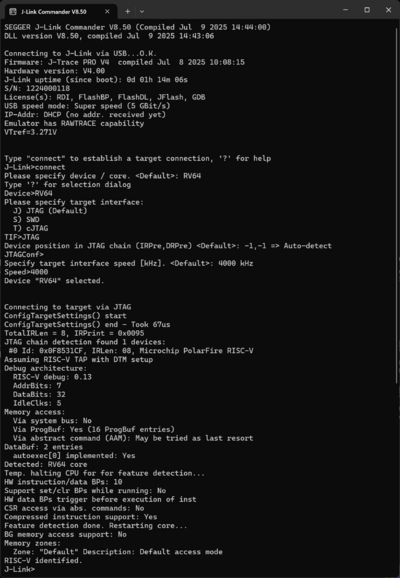

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
