File:Microchip WBZ653 Curiosity board.JPG
Microchip WBZ653 Curiosity evaluation board

This article describes specifics for the Microchip WBZ653 Curiosity evaluation board. It can be used to test & verify Microchip PIC32CX-BZ2 device support.

Minimum requirements

  • J-Link software V7.96m or later

Preparing for J-Link

  • Connect the J-Link to the debug header (J904).
    • RESET = NMCLR
    • VTref = TVDD
    • GND = GND
    • SWCLK = SWCLK
    • SWDIO = SWDIO
  • Power the board via the USB-C jack (J100).

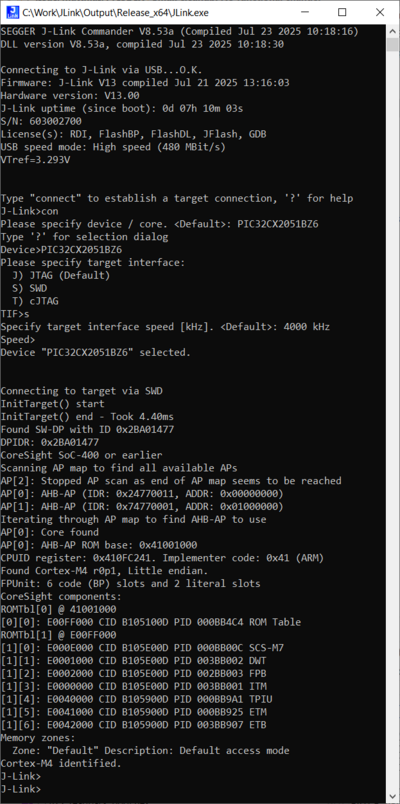

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:
    Microchip WBZ653 Curiosity connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Microchip WBZ653 Curiosity. It is a simple Hello World sample linked into the internal flash.

SETUP
