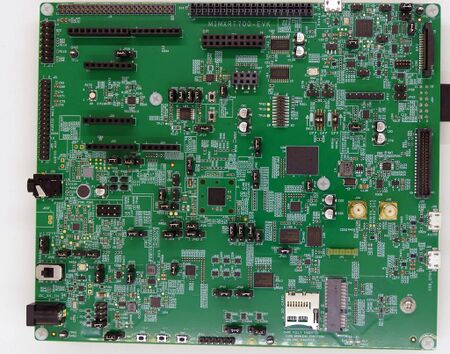

This article describes specifics for the NXP MIMXRT700-EVK evaluation board.

NXP IMXRT700.jpg

Preparing for J-Link

  • Connect the J-Link to the MIMXRT700-EVK via J18 (20 Pin).
  • Power the board via J40: (Micro USB).

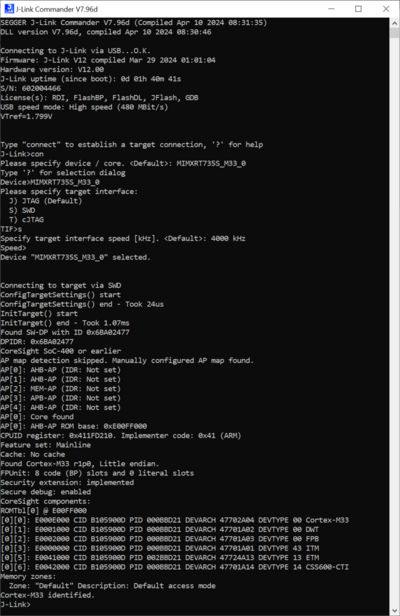

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

NXP IMXRT700 CONNECT.PNG
