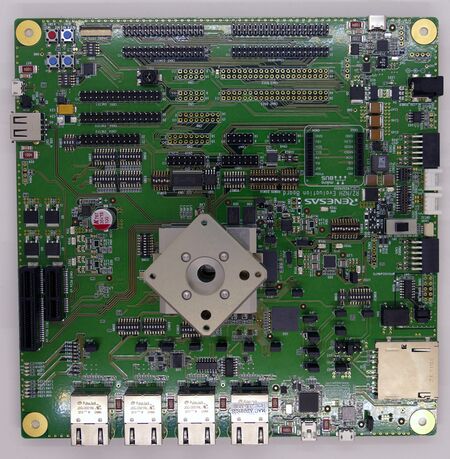

This article describes specifics for the Renesas RZ/N2H evaluation board.

Preparing for J-Link

Connect the J-Link to CN23 or CN24.
Power the board via CN35.
Verify the Connection with e.g. J-Link Commander. The output should look as follows:
