TASKING VX-toolset for ARM is an Eclipse based IDE for ARM Cortex-M/R cores.
TASKING VX-toolset for ARM comes with native support for J-Link and does not require additional software components like the J-Link GDBServer. More information about TASKING VX-toolset for ARM and the installation process can be found here.
Using a TASKING VX-Toolset for ARM Project With J-Link
TASKING VX-toolset for ARM comes with a sample project generator. In the following, a short step-by-step tutorial how to configure a TASKING VX-toolset for ARM project to get up and running with J-Link is given.
- Open the project to configure
- Click Debug | Debug configurations ... from the main menu

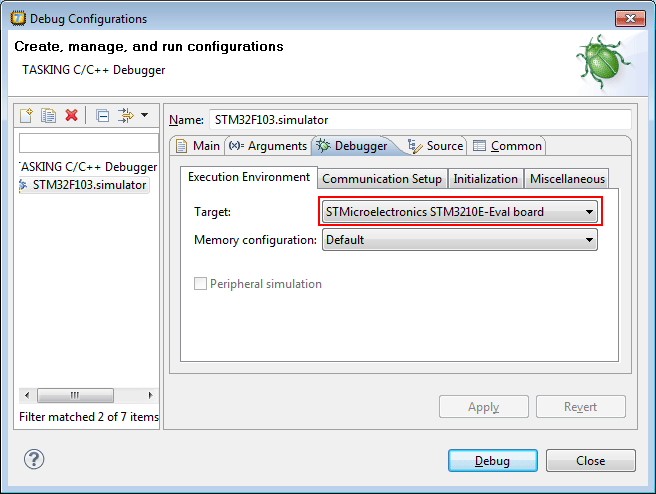

- Select the proper device in order to setup the target

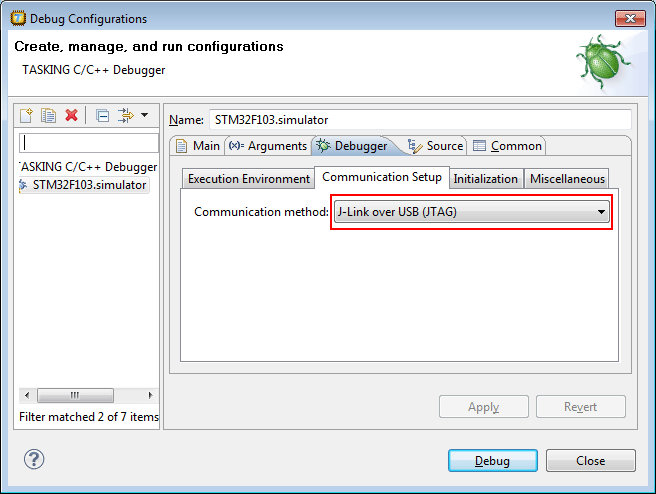

- Switch to the Communication Setup tab
- Select J-Link over USB (JTAG)
- Now the project is ready to be debugged with J-Link / J-Trace.
