This article describes specifics for the Renesas RZ/G3E evaluation board.

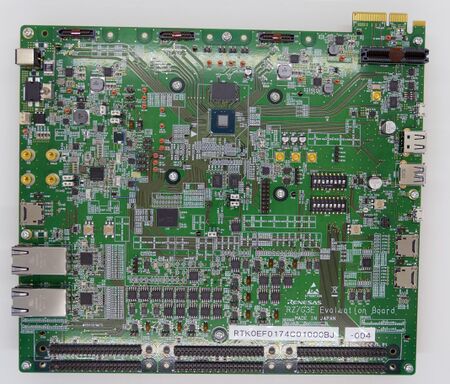

Renesas RZG3E Evaluation Board.jpg

Preparing for J-Link

  • Connect the J-Link to CN2.
  • Power the board via CN6.
  • Switch on Power1.
  • Press Power SW15 for 5s.

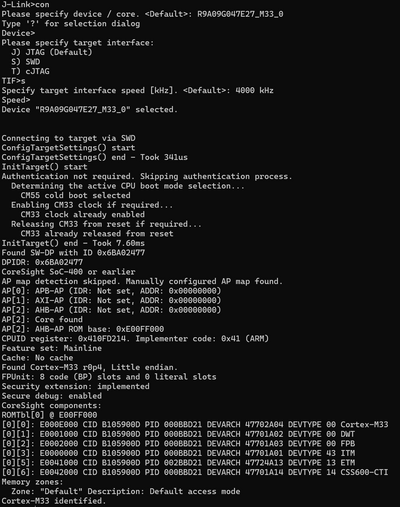

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Renesas R9A09G047E27 connect.png

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas RZ/G3E Evaluation Board.
It is a simple Hello World sample linked into the internal RAM.

SETUP
